Armouring solution 1

Protective solution made with ceramic and textile composite to cope with armour piercing ammunition (12.7 mm – 43g) at 610 m/s (MIL-PRF-46103-E type III norm).

Three textile composite solutions have been made with layers of 3D warp interlock fabric using high modulus and low density polyethylene yarns.

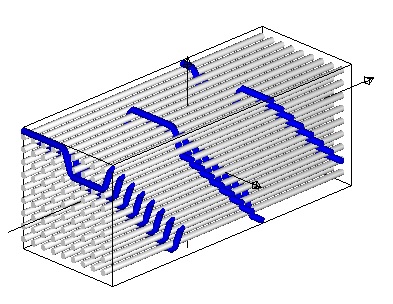

The 3D warp interlock fabric architecture is: 3D warp interlock A – L 4-2-8 Binding {Diagonal 5-4 warp effect}{1 9 17- 2 10 18 – 3 11 19 – 4 12 20 – 5 13 21 – 6 14 22 – 7 15 23 – 8 16 24 – #}.

The cross section views of the textile composite solutions have revealed the delamination between 3D warp interlock fabric layers.
